NUWEIE – Interactive Whiteboard – H1
Interactive Flat Panel Display ~H1
PRODUCT OVERVIEW
The H1 Series Interactive Whiteboard is a professional-grade solution for education and training projects that require powerful interaction without integrated audio or video hardware.
It supports Android and Windows dual systems, smooth multi-touch writing, and long-term stable operation—ideal for bulk deployment and OEM projects.

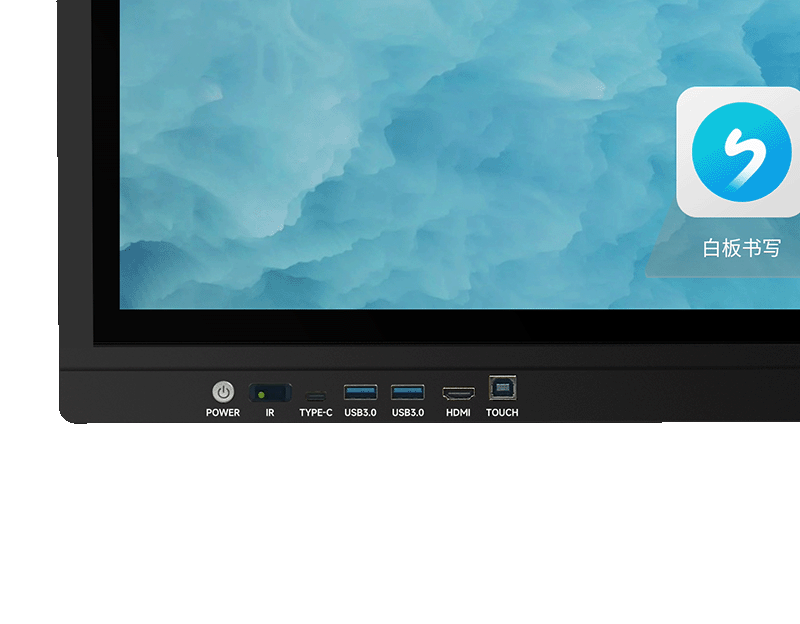

Front-Facing Multi-Port
Meets the needs for multi-port connectivity.

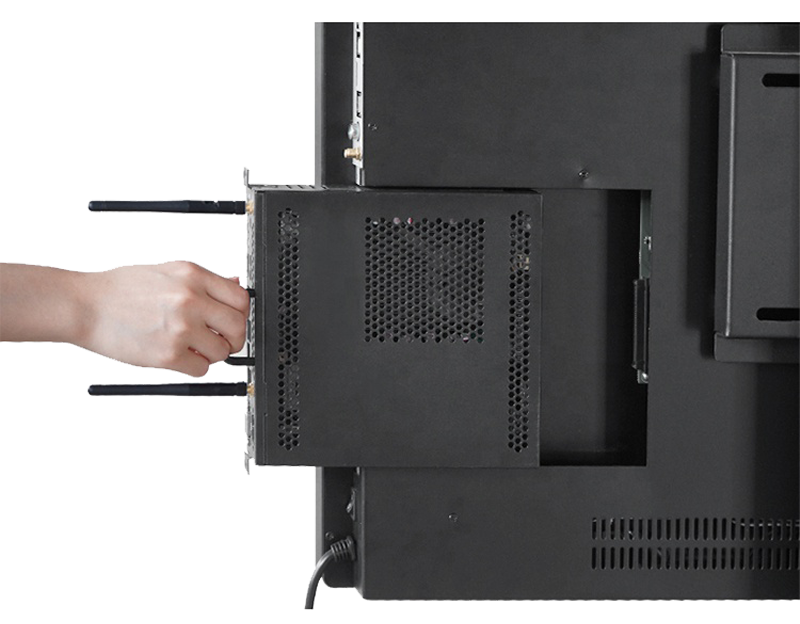

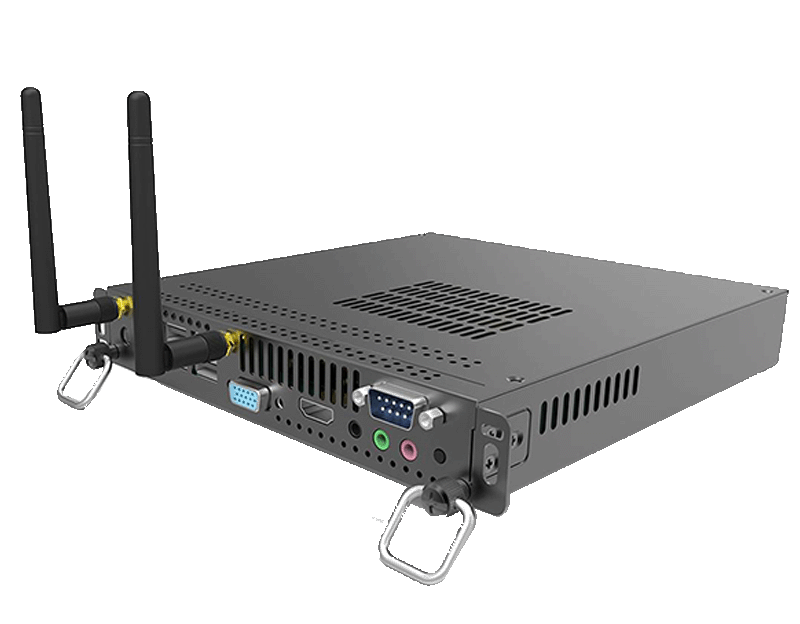

OPS Modular Design
Windows OPS module can be easily upgraded or replaced for future needs.

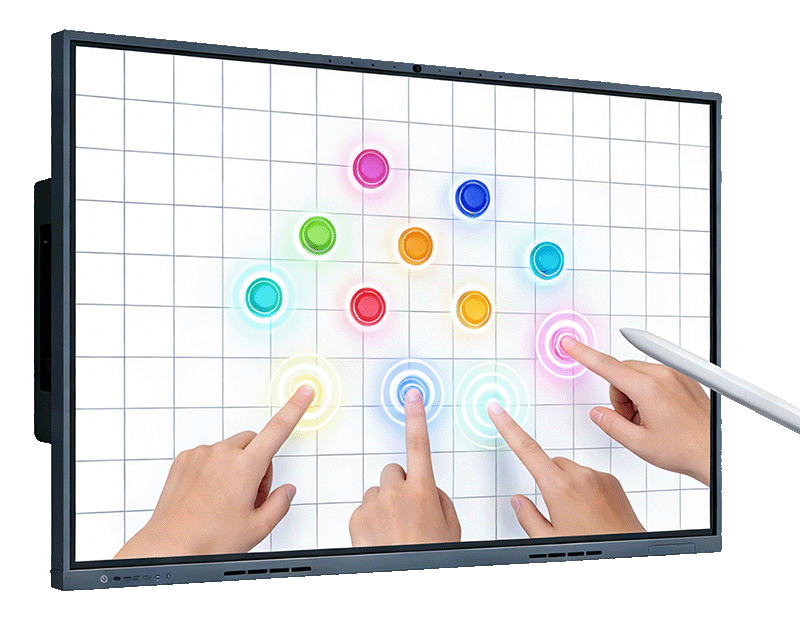

Infrared Multi-Touch Technology
20-point touch, customizable to 40-point touch, supports multi-user collaboration and precise handwriting.
Touch Technology
Infrared touch technology
Finger, stylus, or object touch (≥2mm)
Multi-user simultaneous writing
Gesture zoom, rotate, annotate
Ideal for collaborative teaching
Click here to add your own text

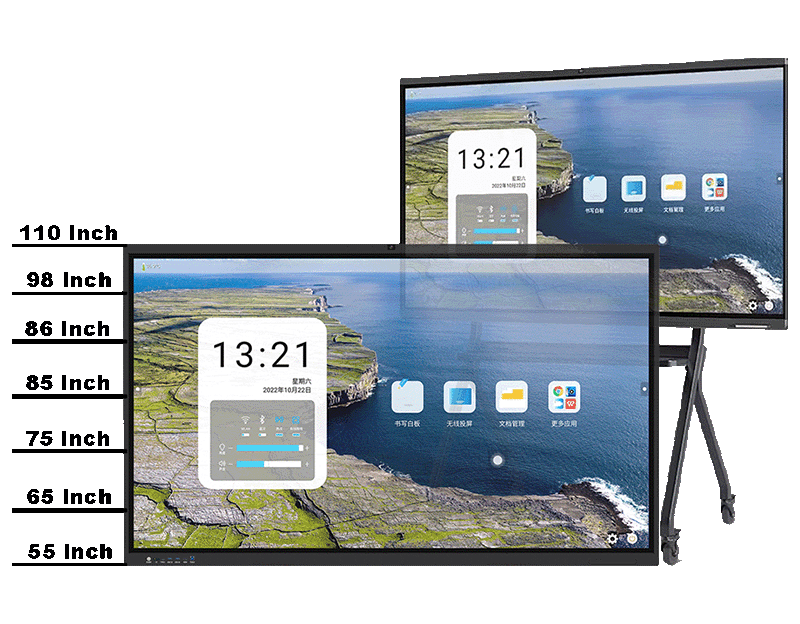

Available Sizes
55″ | 65″ | 75″ | 85″ | 86″ | 98″ | 110″
Download the Specifications Sheet
ANDROID & WINDOWS DUAL SYSTEM
Dual System Support
Runs both Android and Windows operating systems.
One-Click Switching
Instantly switch between systems without rebooting.
Seamless Touch Experience
Consistent touch functionality across both systems.
H1 Series Product Specifications
Size, Appearance & Installation
| Screen Size | Active Display Area (mm) | Overall Dimension (mm) | VESA Mount | Embedded Installation Size (mm) | Power Consumption |
|---|---|---|---|---|---|
| 55" | 1209.6 × 680 | 1265 × 763.8 × 83.3 | 400 × 400 | 1265 × 763.8 × 83.3 | ≈130W |
| 65" | 1428.5 × 803.5 | 1485.2 × 887.9 × 83.2 | 500 × 400 | 1485.2 × 887.9 × 83.2 | ≈112W |
| 75" | 1649.6 × 927.9 | 1707.4 × 1013 × 83.2 | 600 × 400 | 1707.4 × 1013 × 83.2 | ≈300W |
| 85" | 1872 × 1053 | 1953.6 × 1152.7 × 93 | 800 × 400 | 1953.6 × 1152.7 × 93 | ≈380W |
| 86" | 1893.4 × 1064.9 | 1953.6 × 1152.7 × 93 | 800 × 400 | 1953.6 × 1152.7 × 93 | ≈360W |
| 98" | 2157.9 × 1213.35 | 2217.4 × 1304.8 × 105.2 | 1000 × 400 | 2217.4 × 1304.8 × 105.2 | ≈590W |
| 110" | 2435.4 × 1369.5 | 2500.8 × 1479.7 × 105.3 | 1000 × 800 | 2500.8 × 1479.7 × 105.3 | ≈784W |
Display Performance
High brightness & 60Hz refresh available on selected models
Display Parameters
| Item | 55–75" | 85 / 98" | 86 / 110" |
|---|---|---|---|
| Resolution | 3840 × 2160 (4K UHD) | ||
| Brightness | 350 cd/m² | 350 cd/m² | 450 cd/m² |
| Contrast Ratio | 5000 : 1 | ||
| Refresh Rate | 4K @ 30Hz | 4K @ 30Hz | 4K @ 60Hz |
| Viewing Angle | 178° (H) / 178° (V) | ||
| Protection Glass | Tempered Glass | Anti-glare Tempered Glass | 4mm Full Tempered Glass |
Touch Experience
Touch System
| Touch Technology | Infrared Touch, 20 Points |
|---|---|
| Writing Method | Finger / Touch Pen (≥2mm) |
| Touch Accuracy | ±1mm (98" ±2mm) |
| Response Time | ≤15 ms |
| Touch Resolution | 32767 × 32767 |
| Driver | Plug & Play (No Driver Required) |
| Multi-user Writing | Supported |
System & Interface
System & Interface
| Operating System | Android 13.0 / Windows (OPS Optional) |
|---|---|
| Built-in Functions | Whiteboard, Annotation, Wireless Screen Sharing |
| Front Ports | USB ×2, HDMI IN, TOUCH USB, Type-C |
| Rear Ports | HDMI IN, USB, AV IN |
| Network | RJ45 LAN |
| Output Interfaces | AV OUT, RS232, COAX |
